[NEW] JDM HONDA LEGEND HYBRID KC2 2018 Wiring Harness (1) GENUINE OEM

Load image into Gallery viewer, [NEW] JDM HONDA LEGEND HYBRID KC2 2018 Wiring Harness (1) GENUINE OEM

[NEW] JDM HONDA LEGEND HYBRID KC2 2018 Wiring Harness (1) GENUINE OEM

Regular price: $9.78 USD
Sale price: $9.78 USD
Regular price
Unit price: per

Shipping calculated at checkout.

Parts

Quantity

Quantity must be 1 or more

Customs Duty Notice: Import duties and taxes are not included and must be paid by the recipient upon delivery.

Fitting Model :

HONDA LEGEND HYBRID KC2

Model Year :

2018

Grade :

Hybrid EX

Parts Information :

Wiring Harness (1)

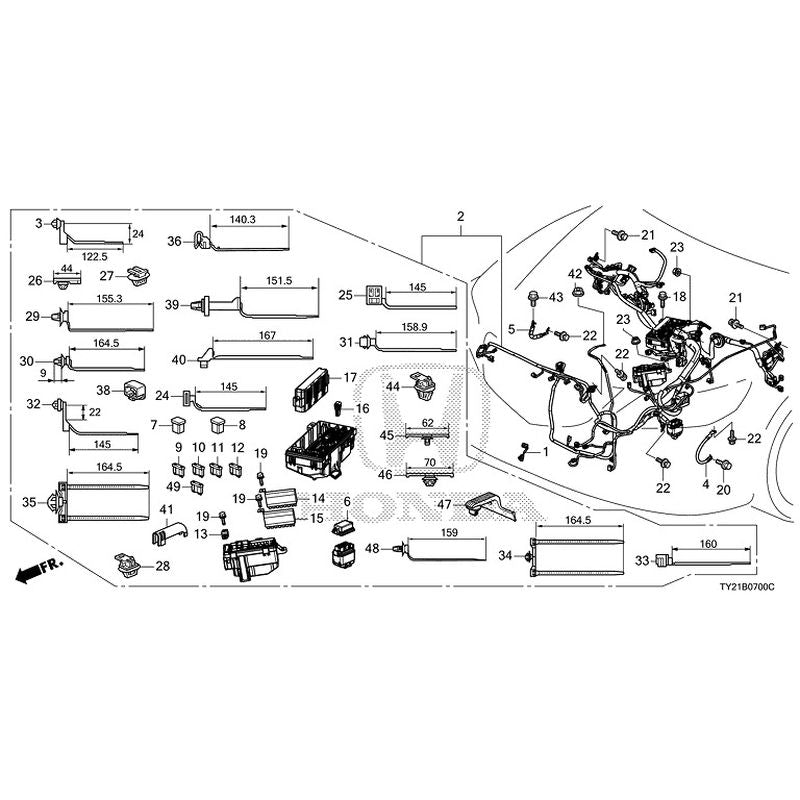

No	Parts Number	Parts Name	Required QTY
1	32105-TY2-A00	Subcode, front ACM	1
2	32120-TY3-J20	Harness, L. cabin wire	1
3	32134-SM4-003	Band, harness offset (10) (brown) (122.5MM)	2
4	32601-TY3-000	Cable assembly., Mission earth	1
5	32610-TY3-000	Cable assembly., Sub earth	1
6	38182-TY3-A01	Cover, relay block upper	1
7	38211-SNA-A01	Fuse, block (20A)	6
8	38211-SNA-A11	Fuse, block (30A)	5
9	38221-SNA-A31	Fuse, blade (7.5A)	7
10	38221-SNA-A41	Fuse, blade (10A)	9
11	38221-SNA-A51	Fuse, blade (15A)	11
12	38221-SNA-A61	Fuse, blade (20A)	1
13	38228-TY3-003	Fuse, block (200A)	1

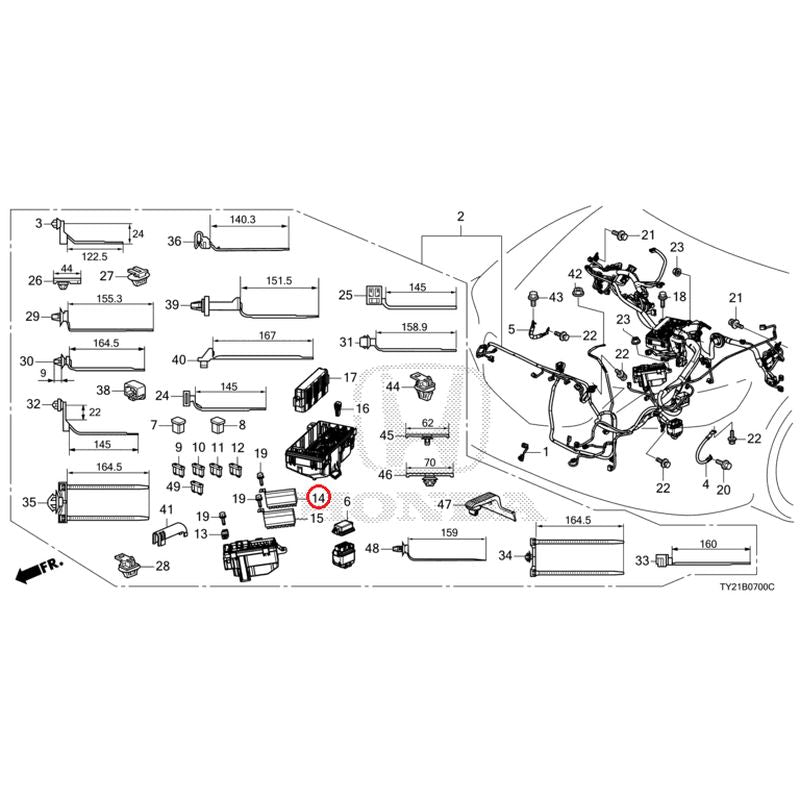

14	38232-TY3-A01	Fuse, multi-block	1
15	38232-TY3-A11	Fuse, multi-block	1

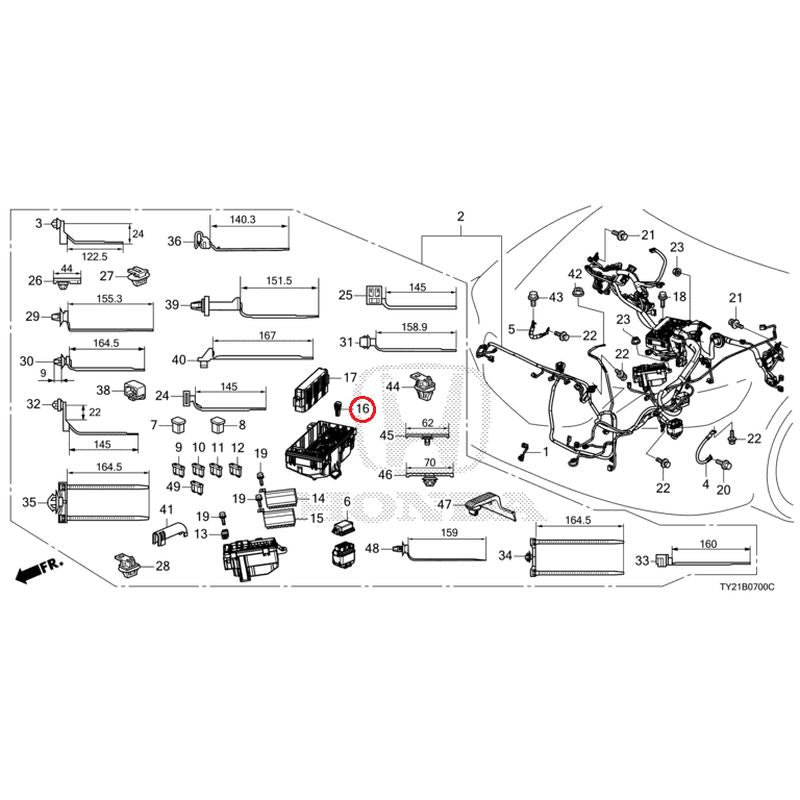

16	38235-TA0-A01	Puller, fuse	1
17	38850-TY3-J02	Module assembly., Relay	1
18	90128-SB0-000	Bolt washer 6X30	1
19	90129-TA0-000	Bolt washer 5X16	4
20	90139-S2R-000	Bolt, Flange 6X16 (Guide)	1
21	90148-SE0-003	Bolt, earth 6X16 (washer 12.5MM) (ZN)	2
22	90149-SE0-003	Bolt, earth 6X16	4
23	90301-SP0-003	Nut, paint cutting 6MM	2
24	91531-SDA-003	Clip, harness band (Natural) (145MM)	1

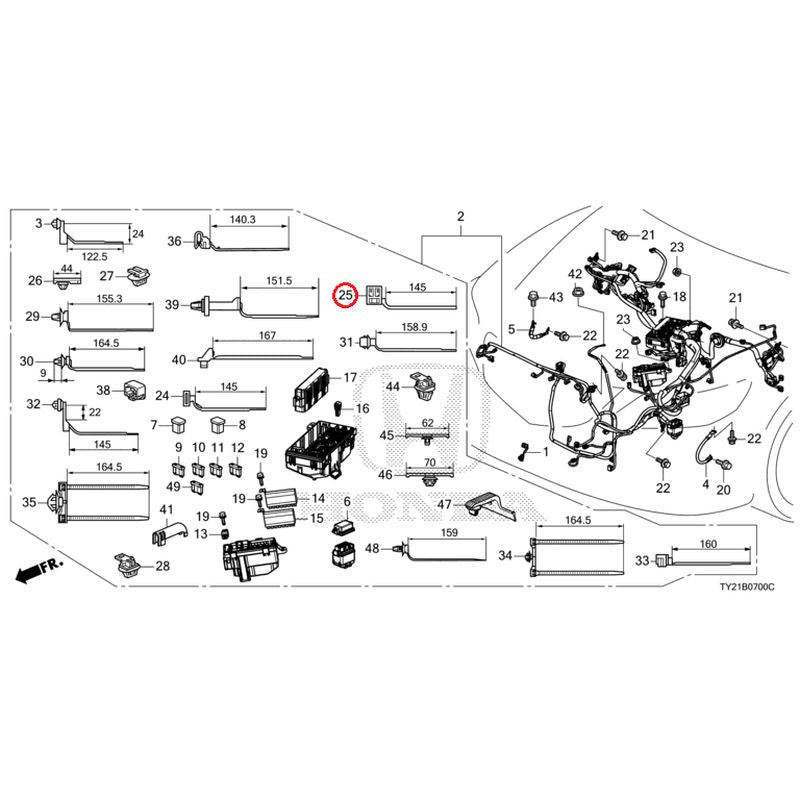

25	91531-SFA-003	Clip, harness band 6MM (natural) (145MM)	1
26	91531-T4N-003	Clip, Wire Harness (Black) (44MM)	3
27	91533-STK-003	Clip, coupler (natural)	5
28	91535-STK-003	Coupler clip	1
29	91540-STK-003	Clip, harness band (black) (155.3MM)	N
30	91542-SNA-003	Clip, Harness Band (Dark Blue) (164.5MM)	N
31	91542-SWY-003	Clip, harness band (black) (158.9MM)	2
32	91542-TF0-003	Band, harness offset (20) (dark blue) (145MM)	4

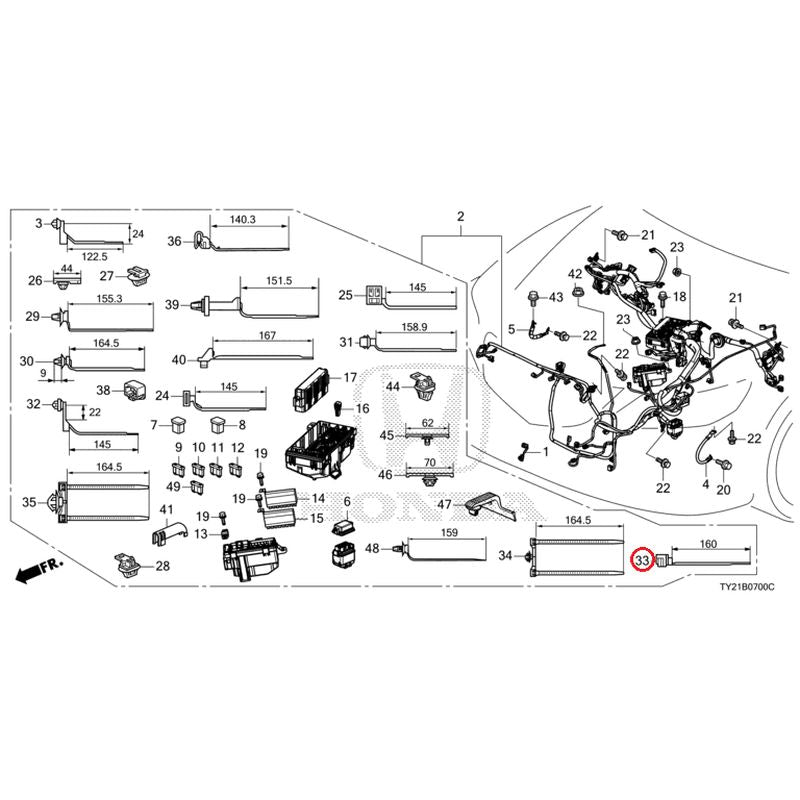

33	91547-SH3-003	Clip, band (natural) (160MM)	1
34	91547-T2A-003	Clip, band harness (40) (Black) (164.5MM)	3
35	91548-TY2-003	Clip, band harness (40) (Black) (164.5MM)	4
36	91549-TA0-003	Clip, Harness Band (Black) (140.3MM)	3
38	91555-S3V-A01	Holder, coupler	1
39	91558-SAA-003	Clip, harness band (30) (Black) (151.5MM)	1
40	91559-S47-003	Clip, harness band (natural) (167MM)	5
41	91765-TK8-A01	Cover, lifter lever (white)	1
42	94050-06080	Nut, Flange 6MM	1
43	95701-06012-08	Bolt, Flange 6X12	1

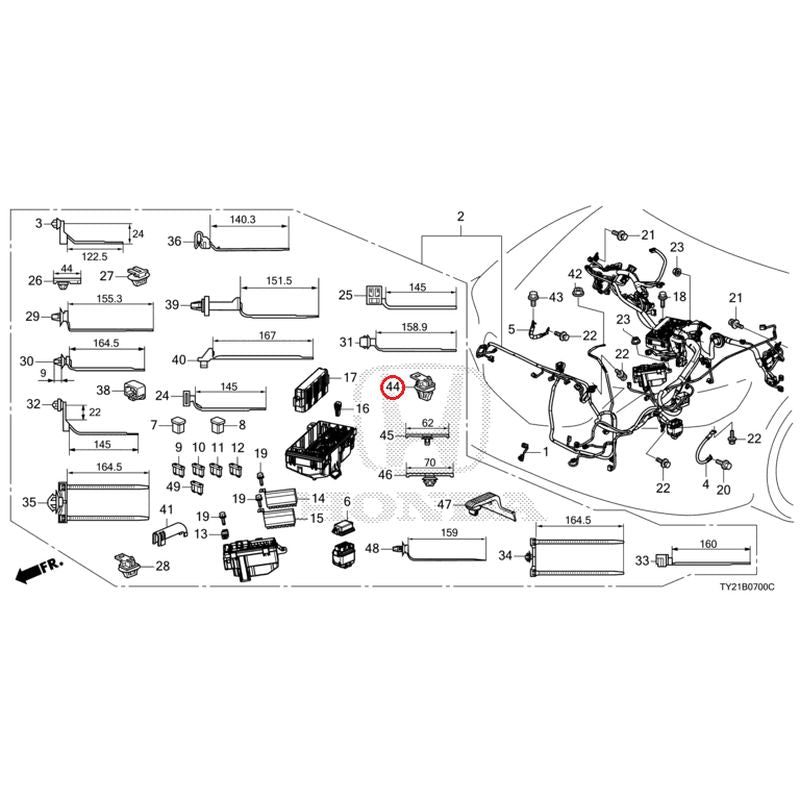

44	91535-TA0-003	Clip, coupler (dark brown)	2
45	91550-T0A-003	Clip, wire harness (62MM) (Black)	1
46	91550-TA0-003	Clip, wire harness (natural) (70MM)	2
47	91552-T2A-003	Clip, wire harness (OFFSET) (black)	1
48	91540-TAA-003	Clip, Harness Band (Black) (159MM)	1

Note :

This is JDM (Japanese Domestic Market) parts, So please make sure the item is fit with your car before purchase.

Shipping :

I will ship to world wide by expedited shipping carrier as EMS, DHL or Fedex! (include tracking number)
** You can check the total shipping fee before payment. Please go "ADD TO CART" and put the shipping information.
** Usually, we will ship items within 5 business days. But if it is stocked out in maker, the delivery will be delay. In that case, I will inform you.

NHP000665
