[NEW] JDM HONDA CIVIC FK8 2020 Front Knuckle (TYPE R) GENUINE OEM

[NEW] JDM HONDA CIVIC FK8 2020 Front Knuckle (TYPE R) GENUINE OEM

$8.68 USD
$8.68 USD
Sold out
Shipping calculated at checkout.

Fitting Model :

HONDA CIVIC FK8

Model Year :

2020

Grade :

TypeR

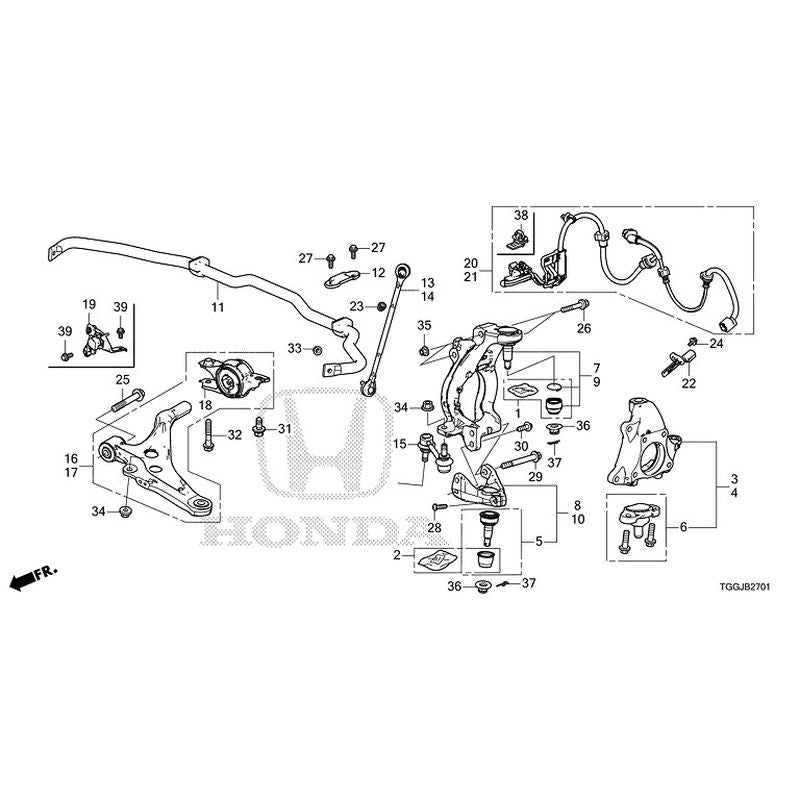

Parts Information :

Front Knuckle (TYPE R)

No
Parts Number
Parts Name
Required
QTY
1
 06510-TY2-A00 Boots set, front lower arm
2
2
 06512-T2A-305 Boots kit, front lower arm
2
3
 51210-TGH-A51 Knuckle COMP., R. Front
1
4
 51215-TGH-A51 Knuckle COMP., L. Front
1
5
 51220-TGH-305 Joint COMP., Front lower ball
2
6
 51240-TGH-315 Bracket COMP., Front knuckle lower
2
7
 51270-TGH-A01 Fork COMP., R. Front damper
1
8
 51275-TGH-A10 Bracket COMP., R. Front lower ball joint housing
1
9
 51280-TGH-A01 Fork COMP., L. Front damper
1
10
 51285-TGH-A10 Bracket COMP., L. Front lower ball joint housing
1
11
 51300-TGH-A01 Stabilizer COMP., Front
1
12
 51308-TBA-A00 Bracket, stabilizer hold
2
13
 51320-TGH-A01 Link COMP., R. Front stabilizer
1
14
 51325-TGH-A01 Link COMP., L. Front stabilizer
1
15
 51340-TGH-A01 Link COMP., Front stopper
2
16
 51350-TGH-A11 Arm COMP., R. Front lower
1
17
 51360-TGH-A11 Arm COMP., L. Front lower
1
18
 51395-TGH-A10 Bracket COMP., Front-compliance
2
19
 51820-TGH-A01 Sensor ASSY., R. Front stroke
1
20
 57450-TGH-A02 Harness ASSY., R. Front
1
21
 57455-TGH-A02 Harness ASSY., L. Front
1
22
 57470-TZ5-A11 Rear sensor Assy
2
23
 90002-S10-000 Nut, flange 10MM
2
24
 90100-SHJ-A00 Bolt, flange 6X16.5
2
25
 90118-TGH-A01 Bolt washer 16X94
2
26
 90118-TGH-A10 Bolt, flange 12X86
4
27
 90169-TBA-A00 Bolt, flange 10X25
4
28
 90170-TV8-E02 Bolts, Torx 10X30
2
29
 90172-TV8-E00 Bolt, flange 14X126
2
30
 90173-TV8-E00 Bolt, flange 12X37
2
31
 90181-TBA-A00 Bolt, flange 14X35
2
32
 90184-TF0-000 Bolt, flange 14X71
2
33
 90306-SB2-013 Nut, self-locking 10MM (crimped)
2
34
 90364-SJA-000 Nut, self-locking 14MM (caulking)
4
35
 90364-TBA-A00 Nut, self-locking 12MM (caulking)
4
36
 90365-TA0-A00 Nut, Castle 14MM
4
37
 90701-S3V-A01 Pin, split (M14)
4
38
 91565-T7A-003 Clip, couplers (for the right)
1
39
 93403-08016-04 Bolt washers 8X16 (for the right)
2

Note :

This is JDM (Japanese Domestic Market) parts, So please make sure the item is fit with your car before purchase.

Shipping :

I will ship to world wide by expedited shipping carrier as EMS, DHL or Fedex! (include tracking number)
** You can check the total shipping fee before payment. Please go "ADD TO CART" and put the shipping information.
** Usually, we will ship items within 5 business days. But if it is stocked out in maker, the delivery will be delay. In that case, I will inform you.
